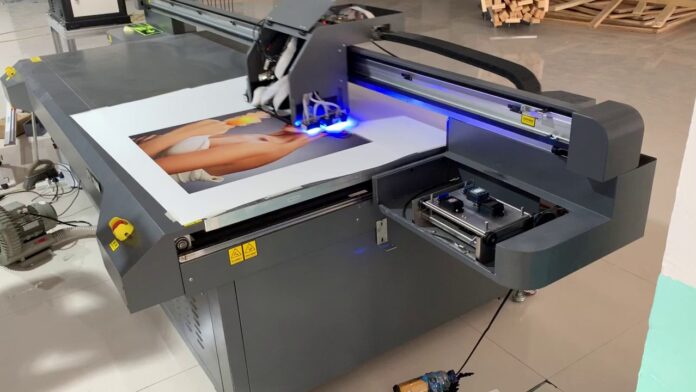

The moment you see a UV flatbed printer in action, printing vibrant colors directly onto a piece of metal or glass, something clicks about what’s actually possible in modern printing. This isn’t just an upgrade from regular printing – it’s a completely different approach that eliminates about half the steps you’re used to dealing with. No mounting, no laminating, no worrying about ink absorption or drying times.
Instant Curing Changes Everything
The UV curing process is what makes these printers fundamentally different from anything else. Regular ink soaks into material and dries through evaporation, which limits you to porous substrates and creates all sorts of timing and handling issues. UV ink stays exactly where you put it and hardens instantly under UV light.
This instant curing means you can handle prints immediately after they come off the machine. No waiting around for ink to dry, no worries about smudging or offsetting. You can stack printed materials right away, which speeds up production and reduces handling damage.
The durability is remarkable too. UV-cured ink forms a tough, scratch-resistant surface that can handle outdoor exposure, frequent handling, and even light abrasion. I’ve seen UV prints that have been outdoors for 5+ years and still look nearly new, while similar conventional prints would have faded significantly.
Material Possibilities That Don’t Exist Elsewhere
This is where UV flatbed printing gets really interesting for creative projects. You can print directly on wood grain and the ink follows every texture detail. Metal prints have an almost luminous quality because the ink sits on the reflective surface instead of soaking in. Glass prints create stunning backlit effects that are impossible to achieve any other way.
Thickness capability opens up three-dimensional printing possibilities. You can print on objects up to 2-4 inches thick, which means custom promotional items, architectural elements, or even small pieces of furniture become printable surfaces. One shop I know prints directly on cutting boards, creating custom kitchen items that would be impossible with conventional methods.
The lack of material preparation is a huge time saver. No need to sand, prime, or specially treat surfaces in most cases. The UV ink bonds to almost everything – metals, plastics, ceramics, wood, glass, stone, and composites all print well with minimal surface prep.
Design Freedom and Creative Applications
UV flatbed printing lets you do things that would be prohibitively expensive or impossible with traditional methods. Variable data printing on rigid materials means you can personalize each piece in a run without setup changes or additional costs. Think custom signs with individual names, or promotional items with unique QR codes.
Layering effects are possible because the instant curing prevents ink mixing. You can print a base color, then overprint with transparent or metallic inks for dimensional effects. Some printers can even build up textural effects by printing multiple layers of clear coat in specific patterns.
White ink capability is a game-changer for design possibilities. You can print on dark materials, create knockout effects, or use white as a base layer under transparent colors for vibrant results on clear materials like acrylic or glass.
Production Efficiency and Workflow Improvements
The all-in-one nature of UV flatbed printing eliminates multiple production steps that slow down traditional workflows. Instead of print, mount, laminate, and trim operations, you’re looking at print and finish. This reduction in handling steps means fewer opportunities for defects and much faster turnaround times.
Setup time is minimal compared to screen printing or other traditional methods. Digital files go directly to print without screens, plates, or other physical setup requirements. This makes short runs economically viable and allows for easy customization or last-minute changes.
Quality consistency is excellent because there are fewer variables in the process. No concerns about mounting adhesive, lamination bubbles, or color shifts during drying. What you see in the proof is what you get in the final product.
Technical Capabilities and Limitations
Print resolution on modern UV flatbed printers typically ranges from 600 to 1440 dpi, which is more than adequate for most applications. The higher resolutions produce photo-quality results, while lower settings speed up production for less critical work.
Color gamut is quite good, though not quite as wide as some other printing technologies. The UV ink formulations have improved significantly, and most printers can match Pantone colors reasonably well. Metallic and special effect inks expand the color possibilities beyond what’s achievable with process colors alone.
Edge quality can be challenging on some materials. The UV curing process can cause slight edge curling on thin, flexible materials, and fine details might not print as crisply on highly textured surfaces. Most applications aren’t affected by these limitations, but it’s worth considering for critical jobs.
Cost Considerations and Value Proposition
UV ink costs are higher than conventional inks – typically $200-400 per liter versus $50-100 for solvent or latex inks. However, the elimination of mounting materials, laminates, and additional labor often makes the total job cost competitive or even lower than conventional methods.
The durability of UV prints can actually reduce long-term costs for applications like outdoor signage. Where you might need to replace conventional prints every 2-3 years, UV prints often last 5-7 years or more without significant fading or wear.
Setup costs are minimal, which makes UV flatbed printing economical for short runs that wouldn’t be cost-effective with traditional methods like screen printing. This opens up opportunities for custom work and specialized applications that have higher margins than commodity printing.
Maintenance and Operational Considerations
Daily maintenance routines are more critical with UV flatbed printers than conventional printers. UV inks can cure in the printhead nozzles if the machine sits idle too long, so most operators run cleaning cycles and test prints daily even when not doing production work.
Environmental conditions matter more than with other printing technologies. Temperature and humidity can affect both print quality and ink curing, so most installations need climate-controlled environments for consistent results.
The learning curve for operators includes understanding material properties, optimizing print settings for different substrates, and managing the more complex color workflows that UV printing enables. Most operators pick up the basics quickly, but mastering the full capabilities takes time and experience.
